In the Web of Things (WoT), a Binding provides guidance for implementing a specific IoT protocol/platform by defining vocabulary terms that can be used in a TD and rules describing how WoT operations map to protocol interactions. This document proposes a binding for LoRaWAN, defining vocabulary and rules for describing interactions (for now, uplink only) with LoRaWAN end devices via a LoRaWAN “network-facing interface” (typically a local Network Server, gateway bridge, or compatible service endpoint).

More specifically, this document defines a set of vocabulary terms that can be used inside a Thing Description or Thing Model document, and associated rules which allow description of WoT operations using LoRaWAN over the network. Additionally, relevant examples are provided to showcase different vocabulary terms and the associated behavior.

Introduction

LoRaWAN devices usually transmit measurements asynchronously: devices emit uplinks periodically or on change, while downlinks are scheduled (often with delivery constraints). A consumer does not poll a sensor on demand; instead it subscribes to uplinks that the device emits on its own schedule. For that reason, this binding models uplink values as WoT events, not readable properties, emphasizing subscribeevent.

Each event describes one decoded value. The event data schema says what the value means, while the event form carries the lorav: terms that say how that value is found in the payload bytes.

Conformance

A Thing Description using this binding conforms when all of the following are true:

• It includes the LoRaWAN binding namespace https://www.w3.org/2024/wot/lorawan# in @context.
• Thing-level lorav: terms are placed on the Thing itself.
• Form-level lorav: terms are placed on event forms.
• Any form using LoRaWAN terms follows the constraints in LoRaWAN Vocabulary.
• It validates against the LoRaWAN JSON Schema.
• Security secrets such as AppKey and NwkKey are declared as WoT security schemes.

LoRaWAN Background

LoRaWAN uses a star-of-stars topology: end devices transmit radio frames, gateways forward them, the network server handles MAC-layer processing, and the application server exposes the decoded application payload (plus a Join Server for OTAA activation). Understanding this separation of concerns is necessary background for the binding defined below.

• End Nodes — sensors and/or actuators that transmit/broadcast LoRa-modulated messages and, depending on device class, open receive windows to accept downlinks. End devices are not paired to a specific gateway, instead any gateway in range can receive the transmission.
• Gateways — receive LoRa messages from any end device in range and forward them transparently to the Network Server over a backhaul (cellular, WiFi, Ethernet, or fiber). Gateways perform no application-level processing and each gateway is registered to exactly one Network Server.
• Network Server (NS) — manages the network: deduplicates uplinks received by multiple gateways, validates message integrity, selects the best gateway for each downlink, runs Adaptive Data Rate (ADR), handles MAC-layer commands, and routes application payloads to the appropriate Application Server.
• Application Server (AS) — processes application-layer data (decrypted with AppSKey) and generates downlink application payloads, which it passes to the Network Server for delivery. A network may have multiple Application Servers for different applications.
• Join Server (JS) — handles OTAA device activation, processing Join-request messages and distributing session keys (NwkSKey to the NS, AppSKey to the AS).

The application payload is obtained only after LoRaWAN framing, security, and routing are handled by the network infrastructure.

Structure of a LoRaWAN Uplink Message

A LoRaWAN uplink is built from three nested layers: Physical Layer, MAC Layer, and Frame Layer. Each layer is handled by a different component. No single component sees the message in fully decoded form — this is why a WoT Consumer cannot simply "read" a LoRaWAN device the way it would read an HTTP resource.

• Physical Layer (PHY) — the LoRa-modulated radio frame: preamble, PHY header (PHDR), header cyclic redundancy check (PHDR_CRC), and the PHYPayload itself. This layer is terminated at the Gateway, which demodulates the radio signal and hands the raw PHYPayload bytes — together with radio metadata such as SNR, frequency, and spreading factor — to the Network Server over the backhaul. The gateway never inspects anything inside PHYPayload.
• MAC Layer — PHYPayload decomposes into MAC Header (MHDR) | MACPayload | Message Integrity Code (MIC). This layer is terminated at the Network Server, which verifies the MIC using NwkSKey, deduplicates copies received via multiple gateways, processes Frame Options (FOpts) MAC commands (e.g., Adaptive Data Rate (ADR)), and tracks Frame Count (FCnt) for replay protection.
• Frame / Application Layer — MACPayload contains the Frame Header (FHDR), Frame Port (FPort), and FRMPayload. FRMPayload is encrypted with AppSKey whenever FPort > 0. This layer is terminated at the Application Server, which decrypts FRMPayload using AppSKey to obtain the raw application payload bytes.

Payload Codec

Decrypting FRMPayload does not automatically produce structured application data. — It only recovers the raw byte string that the LoRaWAN end device originally packed into the uplink. Turning those bytes into typed values, such as temperature, humidity, battery voltage, alarms, counters, or device status, is the job of a payload codec, applied immediately after FRMPayload decryption, at the Application Server.

The codec is usually JavaScript functions not defined by LoRaWAN itself, but depends on the device, vendor, firmware version, and configuration. The codec specification is usually published in a device datasheet, a vendor portal, or an online documentation. It may follow a fixed binary layout, a TLV scheme, Cayenne LPP, a ZCL-based encoding, or a vendor-defined user-configurable format.

In the following, we show some examples of common codec schema.

Fixed Binary Layout with/without branching

In a fixed binary layout, each byte or group of bytes has a predefined meaning.

Example layout:

Example payload:

01 07 6B 0C CC

Decoding result:

• 0x01: status report
• 0x076B: raw temperature value 1899, decoded as 18.99 °C
• 0x0CCC: raw battery value 3276, decoded as 3.276 V

It's worth mentioning, as a decoder output is not standardized, it can return any measurement in any unit, as well as any additional information based on the configuration. So the final structured output could look like this:

{ "reportType": "status", "temperatureC": 18.99, "batteryV": 3.276 }

Branching: Some devices use the first byte, or sometimes the FPort, to indicate the payload type. The remaining bytes are decoded differently depending on that type. An example is provided in the following section.

Channel-Type-Value Layout

A Channel-Type-Value format uses a channel identifier and a type identifier before the value. The value length is not explicitly included. Instead, the type determines how many bytes must be read. A common example of this approach is Cayenne Low Power Payload, often called Cayenne LPP.

Generic structure:

[Channel][Type][Value]

Example payload:

01 67 00 EA 02 68 7A

Decoding:

Final structured output could look like this:

{ "channel1": { "type": "temperature", "value": 23.4, "unit": "°C" }, "channel2": { "type": "humidity", "value": 61, "unit": "%RH" } }

The advantages of this schema are compactness and interoperability. The disadvantage is that the decoder must know the type table in advance, which offers limited semantics and flexibility.

Type-Length-Value Layout

In a Type-Length-Value format, often abbreviated as TLV, each field contains a type, an explicit length, and then the value bytes.

Generic structure:

[Type][Length][Value]

Example payload:

01 02 01 10

Example interpretation:

TLV is more self-describing than a fixed binary layout because each value includes its own length. This makes it easier to add new field types in future firmware versions. However, it has slightly more overhead because every value carries additional metadata.

Vendor-Defined Configurable Layout

Some devices allow users to configure which measurements are sent and in what order. For example, some sensors allow customized extension based on the attached sensors.

Codec JS function example

The following is an example of a JavaScript function for uplink message decoding from the Netvox: R718A sensor that decodes a fixed binary layout with branching based on the fPort and the first byte of the payload. The code snippet is sourced from TTN device profile repository.


function decodeUplink(input) {
  // Output object — fields are added depending on which fPort and message type is received
  var data = {};

  // fPort identifies the message type.
  // This device uses fPort 6 for sensor data and fPort 7 for command responses.
  switch (input.fPort) {

    case 6: // ── SENSOR DATA PORT ─────────────────────────────────────────────

      // bytes[2] === 0x00 is a special flag meaning this is a VERSION/IDENTITY
      // frame, not a regular sensor reading. Sent once on join or on request.
      if (input.bytes[2] === 0x00)
      {
        // bytes[1]: device type identifier, resolved via a getDeviceName() lookup table not shown here
        data.Device = getDeviceName(input.bytes[1]);

        // bytes[3]: firmware version stored as integer, scaled by 10
        // e.g. 0x0F = 15 → 15/10 = 1.5 (meaning v1.5)
        data.SWver = input.bytes[3] / 10;

        // bytes[4]: hardware revision, raw integer (no scaling)
        data.HWver = input.bytes[4];

        // bytes[5–8]: manufacture date, each byte is one hex pair of the date string.
        // .toString(16) converts the byte to a hex string (e.g. 5 → "5").
        // padLeft(..., 2) zero-pads to 2 chars (e.g. "5" → "05"), ensuring
        // each byte always contributes exactly 2 characters.
        // Concatenated result example: 0x20,0x23,0x12,0x05 → "20231205" (Dec 5, 2023)
        data.Datecode = padLeft(input.bytes[5].toString(16), 2)
                      + padLeft(input.bytes[6].toString(16), 2)
                      + padLeft(input.bytes[7].toString(16), 2)
                      + padLeft(input.bytes[8].toString(16), 2);

        // Return early — version frames contain no sensor readings
        return {
          data: data,
        };
      }

      // ── REGULAR SENSOR FRAME (bytes[2] !== 0x00), sent every 15 minutes at the runtime──────────────────────────

      // bytes[3]: battery voltage.
      // The MSB (0x80 = 10000000) is used as a low-battery flag.
      // & 0x80 isolates that single bit; if it is 1, the battery is low.
      if (input.bytes[3] & 0x80)
      {
        // Mask off the flag bit with & 0x7F (01111111) to get the actual voltage value.
        // Divide by 10 to get volts (e.g. 0x23 = 35 → 35/10 = 3.5 V).
        // Append a warning string so the consumer is immediately aware.
        var tmp_v = input.bytes[3] & 0x7F;
        data.Volt = (tmp_v / 10).toString() + '(low battery)';
      }
      else
        // No low-battery flag — decode voltage directly (e.g. 0x24 = 36 → 3.6 V)
        data.Volt = input.bytes[3] / 10;

      data.Device = getDeviceName(input.bytes[1]);

      // bytes[4–5]: temperature, encoded as a 16-bit big-endian signed integer,
      // scaled by 100 (i.e. 2964 → 29.64 °C, 65436 → −1.00 °C).
      //
      // Negative temperatures are stored in two's complement:
      // the actual range 0x8000–0xFFFF represents −327.68 to −0.01 °C.
      // The most significant bit (MSB) of bytes[4] (checked with & 0x80) acts as the sign bit.
      if (input.bytes[4] & 0x80) // if MSB is set -> negative temperature
      {
        // Reassemble the 16-bit raw value from two bytes (big-endian) via bits shifting:
        // bytes[4] is the high byte → shift left 8 bits,
        // then OR with bytes[5] (low byte) to fill the lower 8 bits.
        // Example: bytes[4]=0xFF, bytes[5]=0x9C → 0xFF9C = 65436
        var tmpval = (input.bytes[4] << 8 | input.bytes[5]);

        // Reverse the two's complement encoding to get the magnitude, then negate.
        // 0x10000 (= 65536) is the 16-bit "clock size"; subtracting gives the distance
        // from zero. Divide by 100 to unscale, multiply by -1 to apply the sign.
        // Example: (65536 − 65436) / 100 * −1 = 100 / 100 * −1 = −1.00 °C
        data.Temp = (0x10000 - tmpval) / 100 * -1;
      }
      else
        // Positive temperature: combine bytes big-endian and unscale directly.
        // Example: bytes[4]=0x0B, bytes[5]=0x94 → 0x0B94 = 2964 → 2964/100 = 29.64 °C
        data.Temp = (input.bytes[4] << 8 | input.bytes[5]) / 100;

      // bytes[6–7]: relative humidity, 16-bit big-endian unsigned, scaled by 100.
      // Humidity is always positive so no sign-bit handling is needed.
      // Example: bytes[6]=0x17, bytes[7]=0x70 → 0x1770 = 6000 → 6000/100 = 60.00 %RH
      data.Humi = (input.bytes[6] << 8 | input.bytes[7]) / 100;
      break;

    case 7: // ── COMMAND RESPONSE PORT ────────────────────────────────────────

      data.Device = getDeviceName(input.bytes[1]);

      // bytes[0] identifies the specific command response type:
      // 0x81 = ACK for a write command (did it succeed?)
      // 0x82 = read-back of the current reporting interval configuration

      if (input.bytes[0] === 0x81)
      {
        // Resolve 0x81 to a human-readable command name via lookup table
        data.Cmd = getCmdId(input.bytes[0]);

        // bytes[2]: 0x00 means the downlink command was applied successfully,
        // any other value means the device rejected or failed to apply it
        data.Status = (input.bytes[2] === 0x00) ? 'Success' : 'Failure';
      }
      else if (input.bytes[0] === 0x82) // event-driven and heartbeat reporting pattern
      {

        data.Cmd = getCmdId(input.bytes[0]);

        // bytes[2–3]: minimum quiet period in seconds.
        // No uplink is sent during this window, even if readings change dramatically.
        // Prevents network flooding from rapid fluctuations.
        // Big-endian 16-bit: bytes[2] is high byte, bytes[3] is low byte.
        data.MinTime = (input.bytes[2] << 8 | input.bytes[3]);

        // bytes[4–5]: maximum heartbeat interval in seconds.
        // The device MUST send an uplink by this deadline even if nothing changed.
        // Allows the server to detect a lost/dead device if no packet arrives in time.
        data.MaxTime = (input.bytes[4] << 8 | input.bytes[5]);

        // bytes[6]: voltage change threshold that triggers an early uplink.
        // Scaled by 10 → e.g. 0x03 = 3 → 0.3 V drop triggers a send.
        data.BatteryChange = input.bytes[6] / 10;

        // bytes[7–8]: temperature change threshold in °C.
        // Big-endian 16-bit, scaled by 100 → e.g. 0x0032 = 50 → 0.50 °C triggers a send.
        data.TempChange = (input.bytes[7] << 8 | input.bytes[8]) / 100;

        // bytes[9–10]: humidity change threshold in %RH.
        // Big-endian 16-bit, scaled by 100 → e.g. 0x01F4 = 500 → 5.00 %RH triggers a send.
        data.HumiChange = (input.bytes[9] << 8 | input.bytes[10]) / 100;
      }
      break;

    default:
      // Any fPort not handled above is unexpected — return a descriptive error
      // so the LNS or WoT Consumer can flag it for investigation.
      return {
        errors: ['unknown FPort'],
      };
  }

  // Return the decoded fields for all non-error, non-early-return paths
  return {
    data: data,
  };
}

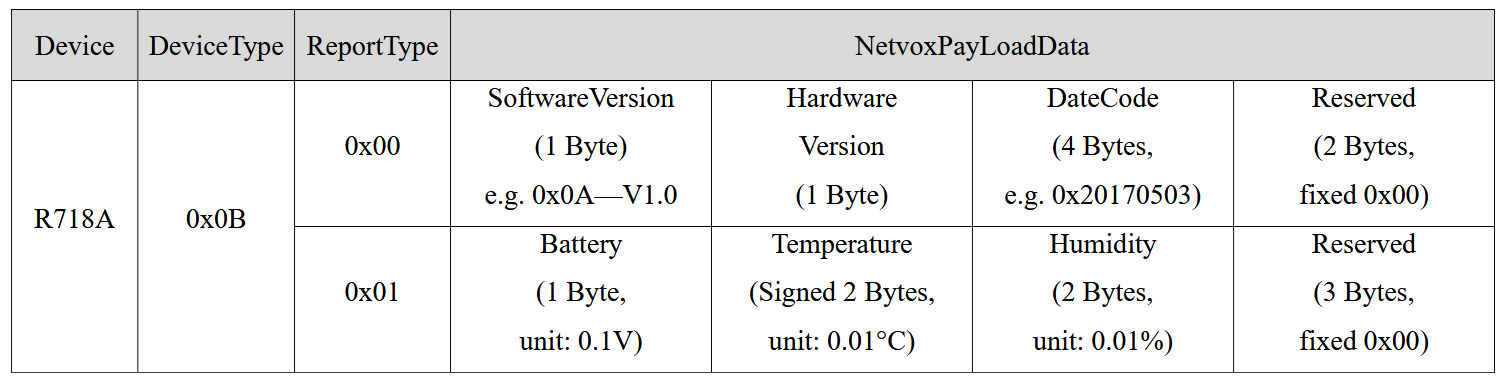

Based on the device datasheet, the following table shows the meaning of each byte in the payload. For FPort 0x06, the following table applies:

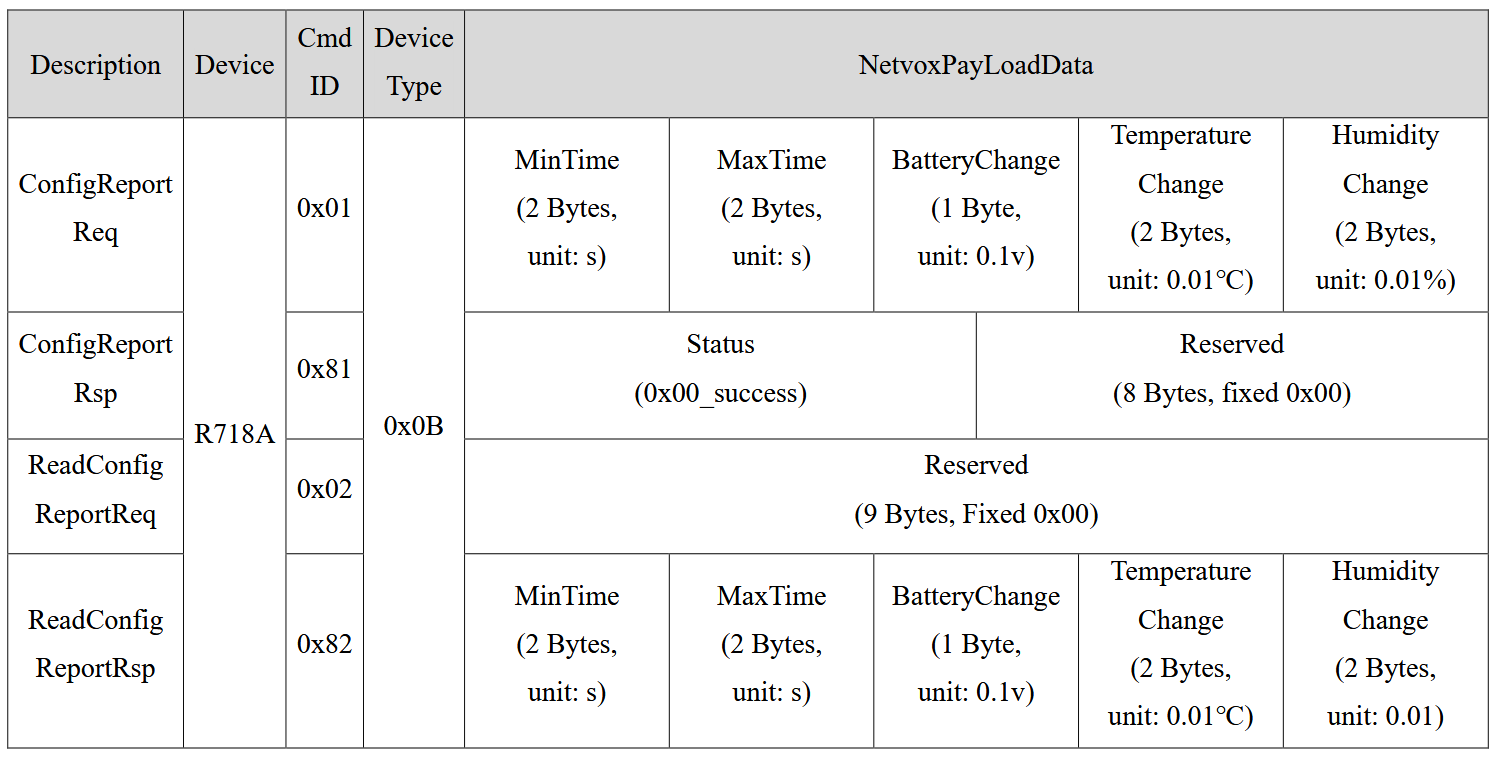

For FPort 0x07, the following table applies:

So an example message "010b01240b2d0bef000000" can be decoded as follows:

URI format

A WoT Consumer never addresses a LoRaWAN end device over the radio. It addresses the network-facing interface — a Network Server, Application Server, or gateway bridge — that has already terminated the PHY, MAC, and Frame layers and can deliver the decrypted application payload. A LoRaWAN URI therefore identifies which interface and which device, and nothing else.

This binding defines the URI scheme with the following Augmented Backus-Naur Form (ABNF) [[RFC5234]]:

lorawan-URI = "lorawan://" authority "/" dev-eui "/" op-target

authority   = host   ; as defined in [[RFC3986]]
dev-eui     = 16HEXDIG            ; the value of lorav:devEUI, case-insensitive
op-target   = "uplink" / "downlink"


Examples:

lorawan://ns.example.org/0000000000000001/uplink

Because every form of a Thing shares the same interface and device, a TD normally sets base once and uses the relative targets uplink and downlink in each form:

{
  "base": "lorawan://ns.example.org/0000000000000001/",
  "events": {
    "temperature": {
      "forms": [{
        "href": "uplink",
        "op": ["subscribeevent", "unsubscribeevent"]
      }]
    }
  }
}

LoRaWAN Vocabulary

The binding uses one event per decoded value. Several events may point to the same part of the payload when a device packs multiple values together, uses tags, or branches on status bytes or frame ports.

The form href for uplinks is the relative target uplink, resolved against the Thing's base as described in URI format.

{
  "@context": [
    "https://www.w3.org/2022/wot/td/v1.1",
    { "lorav": "https://www.w3.org/2024/wot/lorawan#" }
  ],
  "title": "Temperature Sensor",
  "securityDefinitions": {
    "otaa_sc": { "scheme": "apikey", "in": "uri", "name": "appKey" }
  },
  "security": "otaa_sc",
  "lorav:payloadLayout": "fixed",
  "lorav:devEUI": "0000000000000001",
  "lorav:joinEUI": "0000000000000000",
  "lorav:macVersion": "1.0.3",
  "events": {
    "temperature": {
      "data": {
        "type": "number",
        "unit": "Cel"
      },
      "forms": [
        {
          "href": "uplink",
          "op": ["subscribeevent", "unsubscribeevent"],
          "lorav:byteOffset": 2,
          "lorav:wireType": "xsd:short",
          "lorav:endian": "big",
          "lorav:divisor": 100
        }
      ]
    }
  }
}

In this model, the event says that the device publishes a temperature value; the form says where the raw bytes come from and how they are scaled.

Thing-Level Vocabulary

The OTAA root keys are not vocabulary terms. They should be declared as WoT apikey security schemes with the conventional names appKey and, for LoRaWAN 1.1.x, nwkKey.

Payload Layouts

For tlv and ctv, a Thing may optionally declare lorav:tagFields to define the leading fields that make up the tag.

Form-Level Vocabulary

Form-level terms describe how a value is carried on the wire. They belong on event forms.

Value semantics should stay in the event data schema. Use TD core terms such as unit, minimum, maximum, and oneOf rather than creating duplicate binding terms.

Grouped and Conditional Values

Some devices pack several values into a shared byte sequence or expose fields only when a status flag is set. The binding keeps the model simple by still using one event per decoded value.

Examples

Each example is a complete Thing Description illustrating one payload layout. Device EUIs use placeholder values; real deployments will supply actual identifiers and inject OTAA keys at runtime via the declared security scheme.

{
  "@context": [
    "https://www.w3.org/2022/wot/td/v1.1",
    { "lorav": "https://www.w3.org/2024/wot/lorawan#" }
  ],
  "@type": "Thing",
  "id": "urn:dev:example:env-sensor-fixed-01",
  "title": "Environmental Sensor (fixed layout)",
  "description": "Temperature, humidity, and battery packed at fixed byte positions.",
  "securityDefinitions": {
    "otaa_sc": {
      "scheme": "apikey",
      "in": "uri",
      "name": "appKey",
      "description": "LoRaWAN OTAA AppKey. Injected at runtime."
    }
  },
  "security": "otaa_sc",
  "lorav:devEUI": "0000000000000001",
  "lorav:joinEUI": "0000000000000000",
  "lorav:macVersion": "1.0.3",
  "lorav:region": "EU868",
  "lorav:frequencyPlan": "EU_863_870",
  "lorav:payloadLayout": "fixed",
  "events": {
    "battery": {
      "data": { "type": "integer", "unit": "%", "minimum": 0, "maximum": 100 },
      "forms": [{
        "href": "uplink",
        "op": ["subscribeevent", "unsubscribeevent"],
        "lorav:byteOffset": 0,
        "lorav:wireType": "u8"
      }]
    },
    "temperature": {
      "data": { "type": "number", "unit": "Cel" },
      "forms": [{
        "href": "uplink",
        "op": ["subscribeevent", "unsubscribeevent"],
        "lorav:byteOffset": 2,
        "lorav:wireType": "s16",
        "lorav:divisor": 10
      }]
    },
    "humidity": {
      "data": { "type": "integer", "unit": "%" },
      "forms": [{
        "href": "uplink",
        "op": ["subscribeevent", "unsubscribeevent"],
        "lorav:byteOffset": 4,
        "lorav:wireType": "u8"
      }]
    }
  }
}

{
  "@context": [
    "https://www.w3.org/2022/wot/td/v1.1",
    { "lorav": "https://www.w3.org/2024/wot/lorawan#" }
  ],
  "@type": "Thing",
  "id": "urn:dev:example:multi-sensor-ports-01",
  "title": "Multi-Sensor (ports layout)",
  "description": "Routes uplinks by fPort. Within fPort 6, fields are conditional on a discriminator byte.",
  "securityDefinitions": {
    "otaa_sc": {
      "scheme": "apikey",
      "in": "uri",
      "name": "appKey",
      "description": "LoRaWAN OTAA AppKey. Injected at runtime."
    }
  },
  "security": "otaa_sc",
  "lorav:devEUI": "0000000000000002",
  "lorav:joinEUI": "0000000000000000",
  "lorav:macVersion": "1.0.2",
  "lorav:region": "EU868",
  "lorav:frequencyPlan": "EU_863_870",
  "lorav:payloadLayout": "ports",
  "events": {
    "reportType": {
      "description": "Discriminator for fPort 6: value 1 = periodic status, value 0 = startup info.",
      "data": { "type": "integer" },
      "forms": [{
        "href": "uplink",
        "op": ["subscribeevent", "unsubscribeevent"],
        "lorav:fPort": 6,
        "lorav:byteOffset": 2,
        "lorav:wireType": "u8",
        "lorav:alias": "reportType"
      }]
    },
    "batteryVoltage": {
      "data": { "type": "number", "unit": "V" },
      "forms": [{
        "href": "uplink",
        "op": ["subscribeevent", "unsubscribeevent"],
        "lorav:fPort": 6,
        "lorav:byteOffset": 3,
        "lorav:wireType": "u8",
        "lorav:bitmask": "0x7F",
        "lorav:divisor": 10,
        "lorav:presentWhen": { "field": "reportType", "value": 1 },
        "lorav:slot": 0
      }]
    },
    "temperature": {
      "data": { "type": "number", "unit": "Cel" },
      "forms": [{
        "href": "uplink",
        "op": ["subscribeevent", "unsubscribeevent"],
        "lorav:fPort": 6,
        "lorav:byteOffset": 4,
        "lorav:wireType": "s16",
        "lorav:divisor": 100,
        "lorav:presentWhen": { "field": "reportType", "value": 1 },
        "lorav:slot": 1
      }]
    },
    "humidity": {
      "data": { "type": "number", "unit": "%RH" },
      "forms": [{
        "href": "uplink",
        "op": ["subscribeevent", "unsubscribeevent"],
        "lorav:fPort": 6,
        "lorav:byteOffset": 6,
        "lorav:wireType": "u16",
        "lorav:divisor": 100,
        "lorav:presentWhen": { "field": "reportType", "value": 1 },
        "lorav:slot": 2
      }]
    },
    "commandStatus": {
      "data": {
        "type": "integer",
        "oneOf": [
          { "const": 0, "title": "success" },
          { "const": 1, "title": "failure" }
        ]
      },
      "forms": [{
        "href": "uplink",
        "op": ["subscribeevent", "unsubscribeevent"],
        "lorav:fPort": 7,
        "lorav:byteOffset": 2,
        "lorav:wireType": "u8"
      }]
    }
  }
}

{
  "@context": [
    "https://www.w3.org/2022/wot/td/v1.1",
    { "lorav": "https://www.w3.org/2024/wot/lorawan#" }
  ],
  "@type": "Thing",
  "id": "urn:dev:example:leak-detector-tlv-01",
  "title": "Leak Detector (TLV layout)",
  "description": "Each measurement is preceded by [channel_id, channel_type] tag bytes.",
  "securityDefinitions": {
    "otaa_sc": {
      "scheme": "apikey",
      "in": "uri",
      "name": "appKey",
      "description": "LoRaWAN OTAA AppKey. Injected at runtime."
    }
  },
  "security": "otaa_sc",
  "lorav:devEUI": "0000000000000003",
  "lorav:joinEUI": "0000000000000000",
  "lorav:macVersion": "1.0.2",
  "lorav:region": "EU868",
  "lorav:frequencyPlan": "EU_863_870",
  "lorav:payloadLayout": "tlv",
  "lorav:tagFields": [
    { "name": "channel_id",   "type": "u8" },
    { "name": "channel_type", "type": "u8" }
  ],
  "events": {
    "battery": {
      "data": { "type": "integer", "unit": "%" },
      "forms": [{
        "href": "uplink",
        "op": ["subscribeevent", "unsubscribeevent"],
        "lorav:tag": [1, 117],
        "lorav:wireType": "u8"
      }]
    },
    "temperature": {
      "data": { "type": "number", "unit": "Cel" },
      "forms": [{
        "href": "uplink",
        "op": ["subscribeevent", "unsubscribeevent"],
        "lorav:tag": [3, 103],
        "lorav:wireType": "s16",
        "lorav:endian": "little",
        "lorav:divisor": 10
      }]
    },
    "humidity": {
      "data": { "type": "number", "unit": "%RH" },
      "forms": [{
        "href": "uplink",
        "op": ["subscribeevent", "unsubscribeevent"],
        "lorav:tag": [4, 104],
        "lorav:wireType": "u8",
        "lorav:divisor": 2
      }]
    },
    "leakStatus": {
      "data": {
        "type": "integer",
        "oneOf": [
          { "const": 0, "title": "normal" },
          { "const": 1, "title": "leak detected" }
        ]
      },
      "forms": [{
        "href": "uplink",
        "op": ["subscribeevent", "unsubscribeevent"],
        "lorav:tag": [5, 0],
        "lorav:wireType": "u8"
      }]
    }
  }
}

{
  "@context": [
    "https://www.w3.org/2022/wot/td/v1.1",
    { "lorav": "https://www.w3.org/2024/wot/lorawan#" }
  ],
  "@type": "Thing",
  "id": "urn:dev:example:indoor-sensor-ctv-01",
  "title": "Indoor Sensor (CTV layout)",
  "description": "Channel/type/value payload. Channel 1 = battery, channel 3 = temperature, channel 4 = humidity.",
  "securityDefinitions": {
    "otaa_sc": {
      "scheme": "apikey",
      "in": "uri",
      "name": "appKey",
      "description": "LoRaWAN OTAA AppKey. Injected at runtime."
    }
  },
  "security": "otaa_sc",
  "lorav:devEUI": "0000000000000004",
  "lorav:joinEUI": "0000000000000000",
  "lorav:macVersion": "1.0.3",
  "lorav:region": "EU868",
  "lorav:frequencyPlan": "EU_863_870",
  "lorav:payloadLayout": "ctv",
  "lorav:tagFields": [
    { "name": "channel_id",   "type": "u8" },
    { "name": "channel_type", "type": "u8" }
  ],
  "events": {
    "battery": {
      "data": { "type": "integer", "unit": "%" },
      "forms": [{
        "href": "uplink",
        "op": ["subscribeevent", "unsubscribeevent"],
        "lorav:tag": [1, 117],
        "lorav:wireType": "xsd:unsignedByte"
      }]
    },
    "temperature": {
      "data": { "type": "number", "unit": "Cel" },
      "forms": [{
        "href": "uplink",
        "op": ["subscribeevent", "unsubscribeevent"],
        "lorav:tag": [3, 103],
        "lorav:wireType": "xsd:short",
        "lorav:endian": "little",
        "lorav:divisor": 10
      }]
    },
    "humidity": {
      "data": { "type": "number", "unit": "%RH" },
      "forms": [{
        "href": "uplink",
        "op": ["subscribeevent", "unsubscribeevent"],
        "lorav:tag": [4, 104],
        "lorav:wireType": "xsd:unsignedByte",
        "lorav:divisor": 2
      }]
    }
  }
}

Scope and Known Limitations

This binding currently describes uplink decoding and the generation of compatible payload codecs. It does not yet define a complete downlink model.

• Arrays and nested object payloads are not represented by this event-per-value model.
• Some TLV variants outside the declared tag-field style are not covered.
• Explicit match cases are supported, but wildcard or default branches are not yet modeled.
• Some vendor-specific alternate source branches remain difficult to express cleanly.
• Generated JavaScript codecs may differ in edge cases involving shared-byte gaps, even when reference decoding is correct.

Machine-Readable Artifacts

The binding vocabulary and validation rules are published alongside this page:

• JSON-LD context
• JSON Schema bundle
• RDF vocabulary
• Rendered ontology summary
